The new liner range from Blatchford

Please choose your language (you only have to do this once):

Silcare Breathe Liner

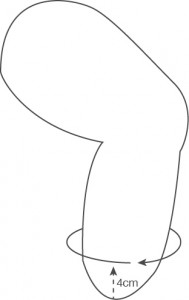

Silcare Liner Circumference MeasurementLiner Measurement

Circumference taken 4cm from distal end of residual limb. If an exact size is measured choose the next size down.

Socket Fit Technology

For best results, we recommend a total contact socket with defined socket shape for improved rotational control. Download our casting guide on how to achieve an optimal socket fit using Silcare Liners.

Download our Liner Casting Guide for more details advice.

Selection

Amputation level: Trans-tibial
Activity level: 3 – 4
Sizes available: 22, 23.5, 25, 26.5, 28, 30, 32, 34, 36, 40

Part number:

SB TT CP/LP XX L
Silcare
Breathe
Trans-tibial Cushion/Locking
Parallel
Size* Light
Tone

* size 22 – 40, 23.5 = 23 / 26.5 = 26

Example: SBTTCP24L

Downloads

  Silcare Breathe Flyer

Suspension Sleeves

The following suspension sleeves are recommended for use with Silcare Breathe Liners.

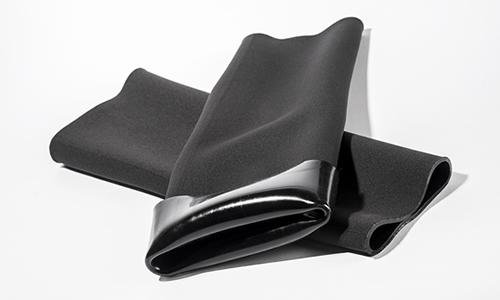

ALPS Seamless Sleeve

Alps Suspension Sleeve

  • 2mm uniform thickness
  • Alps Grip Gel for secure suspension
  • Available in black
Measured size Part number
25-30cm SFB20-2
31-34cm SFB24-2
35-37cm SFB26-2
38-40cm SFB28-2
41-45cm SFB32-2

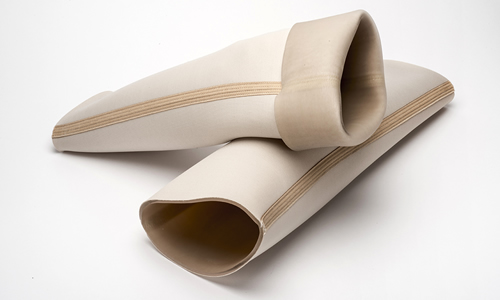

ALPS Easysleeve SFR

Alps EasySleeveTM SFR

  • 3mm or 6mm uniform thickness
  • High performance fabric to improve durability
  • Longer length
  • Lateral strips to limit longitudinal stretch
  • Available in beige
Measured size Part number
3mm 6mm
20-24cm SFR-XS SFR16-XS6
25-30cm SFR-S SFR20-S6
31-35cm SFR-M SFR-M6
36-40cm SFR-ML SFR-ML6
41-45cm SFR-L SFR-L6
46-54cm SFR-XL SFR-XL6

Valves & Accessories

lyn-valve-bk2

929052 – Lyn Valve BK2
929052U – Imperial version

threaded-housing

929053 – Threaded Housing
929053U – Imperial version

vac-barb-90-swivel

929055 – Vac Barb 90° swivel

one-way-check-valve

929054 – One-way check valve

in-line-filter

929051 – In-line filter

vacuum-tubing

905464 – Vacuum tubing 1m length

Ordering Information

Information for amputees

Please discuss Silcare Breathe liners with your clinician to determine if they are suitable for you.

Information for clinicians

To order Silcare Breathe please contact Blatchford customer services on +44 (0) 1256 316600 or email the customer services team via the Blatchford website.

For international customers, please contact the Blatchford distributor for your country.
